Maximize Mining Equipment Uptime with NSK's Advanced Bearing Solutions
Durability and reliability are crucial for mining machinery in remote locations, where a single component failure can halt operations. Bearings in mining, quarrying, and construction endure punishing loads, misalignment, mechanical shock, grit, contamination, and marginal lubrication. Access to machinery used for extraction, transport, and processing is often remote or restricted, making unexpected failures costly and disruptive.
Grit and Contamination
Compromised Lubrication Conditions
Misalignment
High Load
Shock and Vibratory Loads
Maximize Mining Equipment Uptime with NSK's Spherical Roller Bearing Solutions
Durability and reliability are crucial for mining machinery in remote locations, where a single component failure can halt operations. Bearings in mining, quarrying, cement, and construction endure punishing loads, misalignment, mechanical shock, grit, contamination, and marginal lubrication. Access to machinery used for extraction, transport, and processing is often remote or restricted, making unexpected failures costly and disruptive.
Grit and Contamination
Compromised Lubrication Conditions
Misalignment
High Load
Shock and Vibratory Loads
NSK High-Performance Bearings: Engineered to Overcome Mining's Toughest Challenges
Mining equipment like vibrating equipment, conveyors, and crushers operate in environments of extreme stress and wear. NSK’s advanced spherical roller bearings are engineered to meet these demands with solutions tailored to specific applications:
- Vibrating Equipment: NSK’s long-life VE/VS series spherical roller bearings are engineered with optimized internal bearing design, surface finishes, and heavy-duty precision machined one-piece brass cage.
- Conveyors: For arduous and highly contaminated operating conditions in mining and quarrying conveyors, combining our long-life Hi-TF material with an easy-to-install seal, NSK has delivered an advanced, reliable contaminant- and wear-resistant solution.
- Crushers: NSKHPS Spherical Roller Bearings are optimized by design to deliver higher load-carrying capacity, operate with higher limiting speeds, and perform reliably for a longer operating life.
With cutting-edge materials, advanced designs, and application-specific engineering, NSK bearings deliver outstanding durability and performance to keep your mining operations reliable, efficient, and cost-effective.

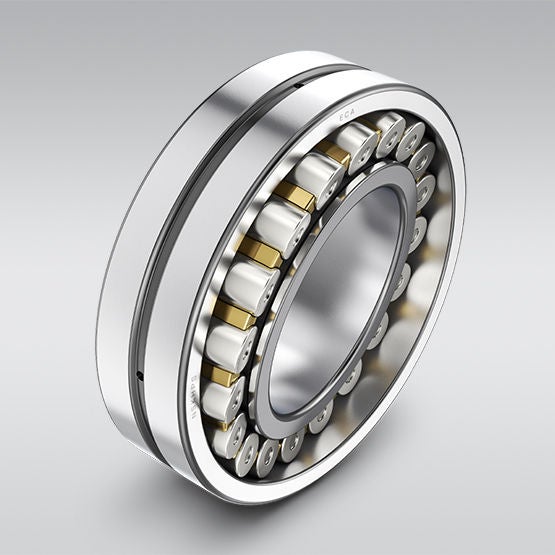

NSK offers a wide range of premium quality Spherical Roller Bearings for all types of mining applications.
- Vibrating Equipment
- Conveyors
- Crushers

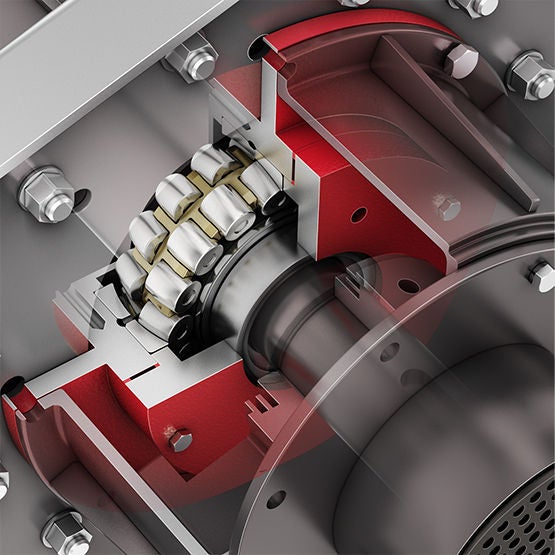

NSK Spherical Roller Bearings for Vibrating Equipment
NSK’s long-life VE/VS series spherical roller bearings are engineered specifically to handle high speeds, eccentric loads, and mechanical shock in vibrating machinery. With an optimized internal bearing design and tightly controlled clearance and dimensional tolerances, these bearings deliver robust capacity and smooth operation over an extended service life.
Engineered Solutions for Vibrating Equipment:
- Manufactured from ultra-clean steel for optimal fatigue strength and longer life
- Heavy-duty, precision machined one-piece brass cage
- Advanced raceway surface finishing for durability and wear resistance
- Special dimensional tolerances - set at 1/2 relative to the normal - to minimize vibration during operation
- Special internal clearance - set at upper 2/3 relative to the standard - for optimal operating clearance and reduced heat generation
Performance Benefits:
- As much as twice the service life of conventional bearings in applications subject to frequent vibration
- High resistance to heavy and shock loads
- Surface finish minimizes sliding contact in high load zones and facilitates better lubricant film
- Superior roller guidance and lubricant distribution from machined brass cage
- High-speed performance with low temperature rise
- Reduced bearing damage from slippage, surface fatigue and flaking
- Higher operational reliability - reduced maintenance cost
Download the VE/VS Series Brochure for Full Technical Specs, Dimensions, & Applications
SUCCESS STORY
NSK VS Series Bearings Achieved a 100% Improvement in Vibrating Screen Reliability
NSK VS Series Bearings Achieved a 100% Improvement in Vibrating Screen Reliability
$61,340 saved
12+ months durability
NSK HTF steel bearings solved frequent failures at a Central American quarry, extending bearing life from 6 months to over 1 year
Products

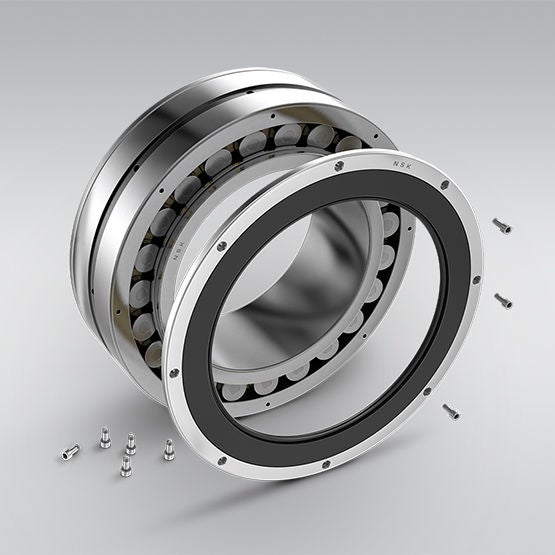

Contaminant and Wear Resistant: Sealed Spherical Roller Bearings
The harsh conditions of mining and quarrying operations take a toll on conventional roller bearings used in head, tail, drive, and tensioning pulleys of conveyors. These bearings often suffer from contamination by hard particles like dirt and dust, as well as water ingress, leading to significantly shortened lifespans. The result? Costly downtime, repetitive maintenance, and thousands of dollars lost.
Spherical Roller Bearings with Removable Seals are engineered to tackle mining's toughest challenges. These complementary solutions combine advanced materials with innovative sealing technology to maximize conveyor reliability while minimizing maintenance costs.
Comprehensive Sealing Solutions:
- High performance seal design, including characteristics to compensate for bearing misalignment
- Removable seal permits measurement of internal clearance during installation
- Easy, bolt-fastened installation of seal
- Dimensionally interchangeable
High Performance Material:
- NSK has adopted our Hi-TF long-life Tough Steel material for bearing inner and outer rings, with the technology to:
- Exponentially have a longer service life in contaminated lubrication conditions.
- Reduce the rate of wear and improve seizure resistance.
- Offer organically higher attainable dynamic loads.
Performance Advantages:
- Combining the Tough Steel material technology with advanced and easy-to-install seals, NSK delivers:
- High performance against contaminant-related bearing failures.
- Reliable solutions for conveyor applications.
Download the Sealed Spherical Roller Bearing Brochure for Full Technical Specs, Dimensions, & Applications
SUCCESS STORY
NSK Hi-TF Bearings: 2.8x Longer Life for Coal Mine Pulleys
Products
Engineered for Reliability in the Harshest Crusher Conditions
Mining crushers face extreme conditions like high-impact forces, heavy loads, dust, heat, and constant vibration. These challenges can cause rapid wear, unexpected failures, and costly downtime, affecting productivity.
NSK bearings are designed to tackle these issues with superior durability, higher load capacity, and longer service life. They ensure optimal performance, reduced maintenance, and minimal downtime, even in the toughest mining environments.
Engineered for Extreme Mining Conditions:
- Manufactured with high purity steel for superior fatigue strength
- Optimized, high-capacity internal design
- With wear-resistant surface hardened pressed steel and heavy-duty machined brass cages
- Advanced raceway surface finishing for durability and wear resistance
Advanced Surface Technology:

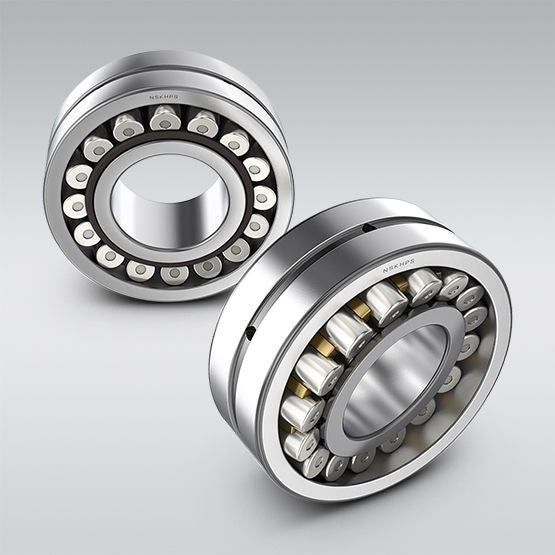

- With NSKHPS spherical roller bearings, superior ring grinding technology in conjunction with optimized roller-to-raceway profiles control roller motion within the bearing, reducing bearing wear and improving bearing fatigue life.
Download the NSKHPS Series Brochure for Full Technical Specs, Dimensions, & Applications
SUCCESS STORY
Doubling Bearing Life and Enhancing Reliability in Harsh Quarry Conditions
Products
For NSK's complete range of mining products, click here.
Strategic Supply Solutions
NSK offers comprehensive support to our partners through our global technology network and 66 production sites strategically positioned worldwide. As part of this commitment, customers and end users across the Americas benefit from our ability to provide spherical roller bearings out of our plant in Clarinda, Iowa.
This offers substantial opportunities for both new and existing NSK customers to take advantage of, including:
- Safeguard Against Trade Adjustments: Protect your business from potential changes to import fees with locally supplied products.
- Limit External Influences: Reduce exposure to global uncertainties and external negative influences.
- Supply Chain Resilience: Overcome supply chain challenges such as port strikes, increased shipping costs, and geopolitical instability.
- Local Production for Local Business: Benefit from faster transit times and improved service with our US manufacturing facility.
- Local Engineering Support: Gain direct access to local engineering expertise, enhancing your maintenance and design processes.
