Pneumatic Shaft Deflection Sensor System

Non-contact, high-accuracy shaft deflection sensor system. Compressed air is used for measurement, requiring no wiring in the spindle

We have developed a new spindle shaft deflection measurement system for machine tool spindles that combines air micrometer and oil-air technologies. The non-contact, high-accuracy system eliminates the need to worry about wiring and installation, which can become obstacles when introducing sensors.

Pneumatic Shaft Deflection Sensor System

Features

1. Air micrometer technology achieves non-contact, high-accuracy measurements.

2. Using oil-air lubrication, the system is compact and easy-to-implement close to spindle bearings.

3. No wiring is required in the spindle, making the system unaffected by electrical noise from the motor.

Background

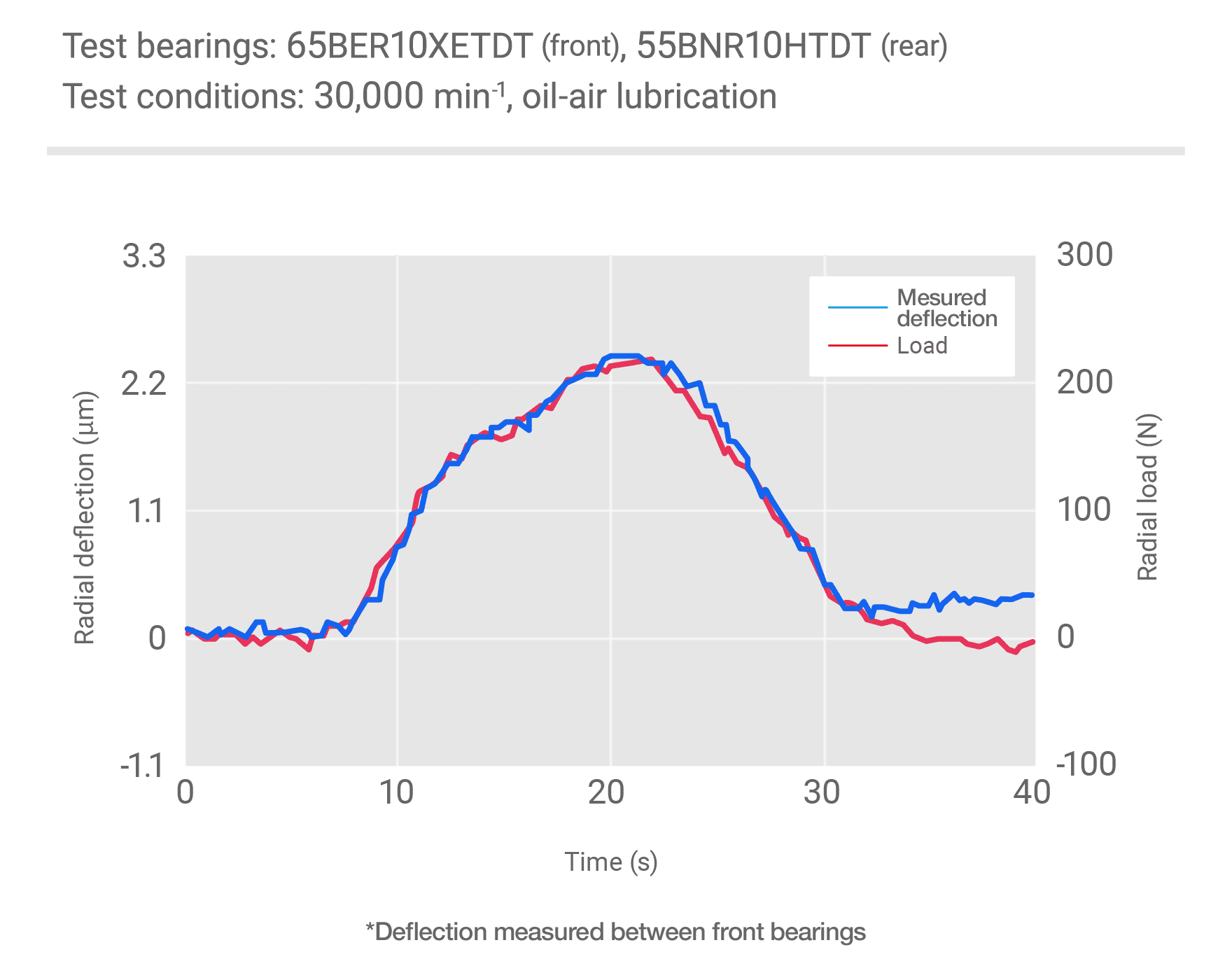

Radial Load Test Result

Radial Load Test Result

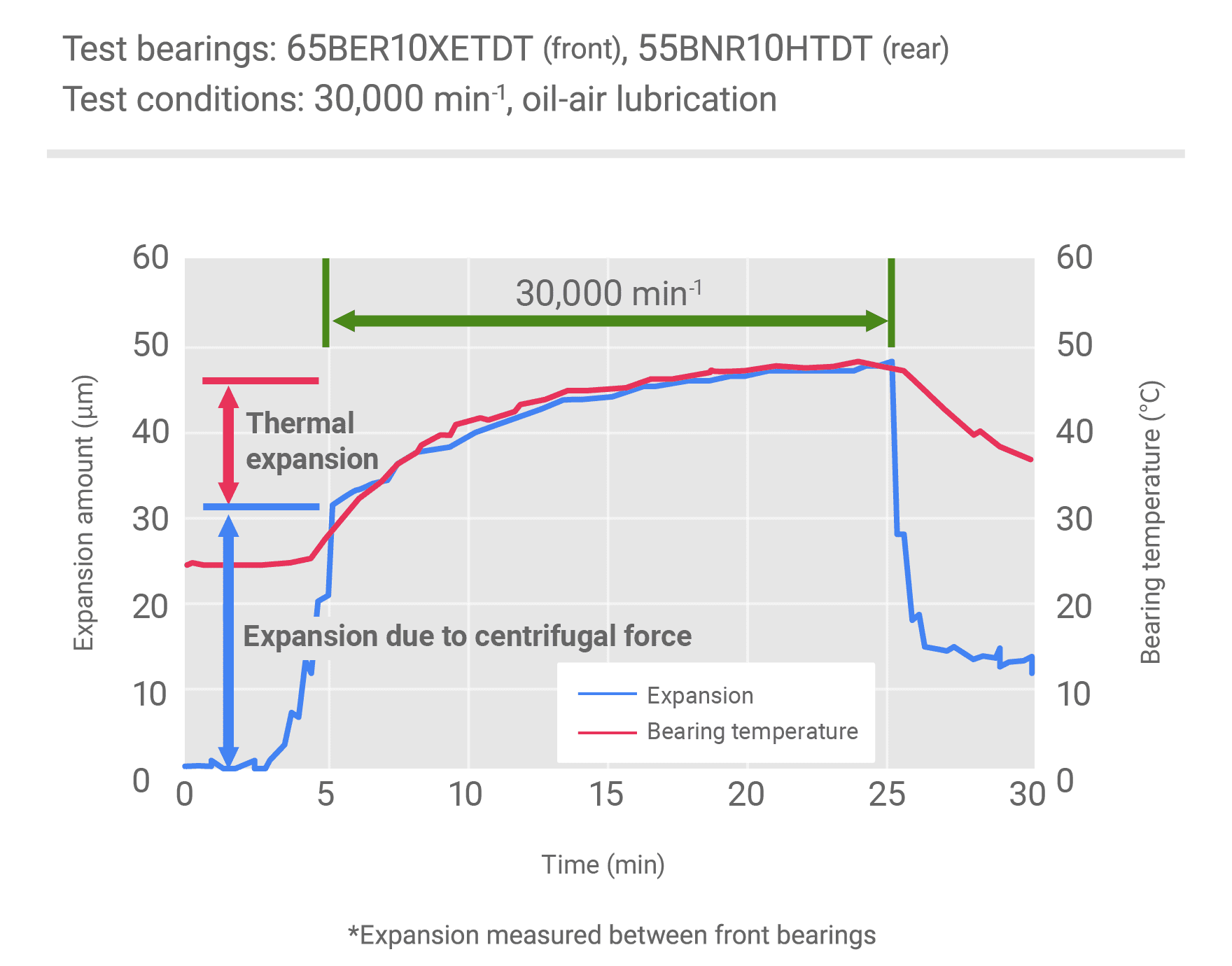

Expansion Amount Test Result

Expansion Amount Test Result
