Ball Screw Support Bearings
Overview
High-precision angular contact thrust ball bearings for precision ball screws are designed for a wide variety of applications with a range of high rigidity and high load capacity series available.
Lineup Highlights
- A high rigidity series for machine tools provides high axial rigidity and precise rotation with low drive power.
- A sealed high rigidity series for machine tools improves life and reliability.

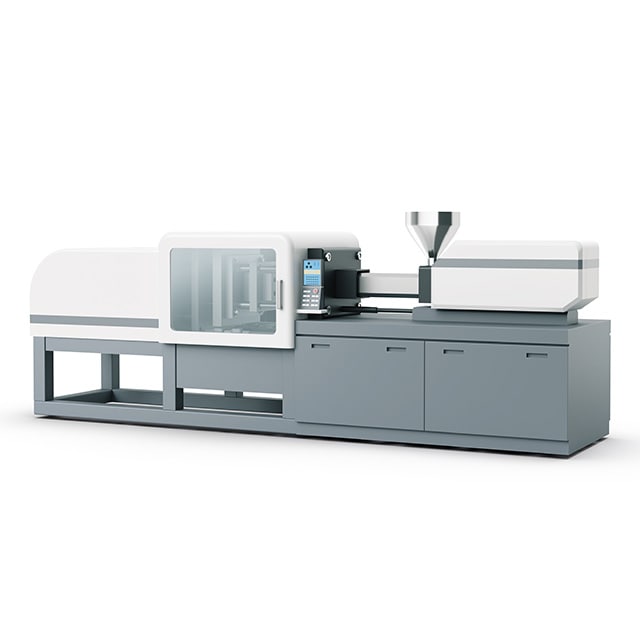

- A high load capacity series for electric injection molding machines offers longer service life and higher permissible loads through optimized ball diameters and contact angles.
Product List
NSKHPS bearings come in a wide lineup and provide high rigidity and performance, with sealed options available for longer life.
Features
- High rigidity & long life
A high-performance design specialized for ball screws realizes high rigidity and extended service life. - Reliable sealed options
Highly dust-resistant contact seals maintain performance. - Easy-to-handle
Grease-filled NSKHPS bearings with seals and mounting holes help simplify operations. These high-performance double-row angular contact ball bearings come arranged back-to-back (DB) with an integrated outer ring.
Features
- No need to fill grease
Bearings come pre-packed with high-performance grease, eliminating difficult and messy grease filling. - Easy to mount/dismount
BSF types feature bolt holes and an extraction groove for easy handling. - Options for even longer life/higher rigidity
Matched DT pairs available for applications with large external loads or where high rigidity and long life are required.
FAQs
NSKTAC Series bearings are specially designed for ball screw support. They provide particularly high precision and high rigidity under large thrust loads.Catalogs
Search our full listing of catalogs for more details.
